- Additional Product Details

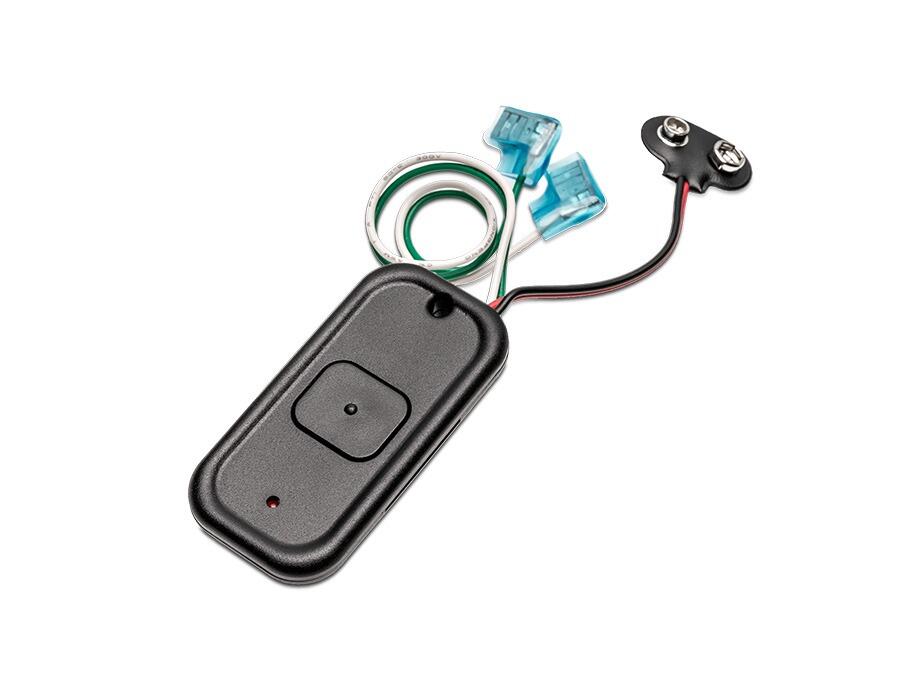

Actuator & Transmitter - (RF) Low Profile, Surface Mounted
The push plate includes an integrated transmitter primarily for manually switching automated entrances. These switches can be incorporated into any automated or access control system where larger, easily operable switches are required.
For manual activation (single or double doors), specify SLR4 actuators and accessories as follows:
- SLR4 – Actuator & Transmitter (Push To Open)
- SLR4.BLANK – Actuator & Transmitter (No Engraving)
- SLR4.WC – Actuator & Transmitter (Push to Open w. Wheelchair Symbol)
All engraved designs, including those incorporating the wheelchair symbol, are blue infill.- Max voltage at the contacts - 250Vac
- Max current at the contacts - 6A dc - 15A ac
- Output contacts - Dry contacts (NO, NC, COM)
- Temperature range - Minus 30°C to plus 55°C
- Protection - IP52 (housing)
- Typical operating force - 0.45kg
- Size - 130mm dia. x 36mm projection
- Battery type (supplied with actuator transmitter) - 9-Volt (type 6LR61)
- ABS - Black (Surface Box)
- Transmitter frequency - 433 MHz
Any system using SLR switches or RF fobs requires at least one EAS (RF) Receiver. This receiver has a maximum detection distance of 25M (open field). The maximum number of programmable transmitter buttons per receiver is 100.An activation control is used to switch an automatic door operator. The correct choice of control is critical since this will dictate how well the automated entrance works. The selection of switching methods will regulate traffic flow and prescribe how and by whom the door is used. Your choice may also dictate whether the automated doors are labelled Low Energy Swing Doors or Powered Doors.
How to Make the Correct Choice. Initially, the choice is twofold: automatic activation or manual activation. Consideration should be given to the following: traffic flow or density and traffic profile. High-traffic situations in public or commercial buildings require frequent unhindered door switching via microwave motion sensors (or detectors). Low-traffic situations, usually residential applications or automated doors specifically designed for the exclusive use of those requiring automated access, can be controlled manually using actuators (or push pads).
LCN Door Closers | Von Duprin Exit Devices | Schlage Locks
Relcross Limited (trading as) Relcross Door Controls | Hambleton Avenue | DEVIZES | Wiltshire | SN10 2RT | United Kingdom | T: ++ 44 (0) 1380 729 600 | F: ++ 44 (0) 1380 729 888 | E: sales@relcross.co.uk
- Certification
CE | Warranty: 3 Years (Electrical)
Certificates, including DoPs, downloadable here
- Resources | Downloads
