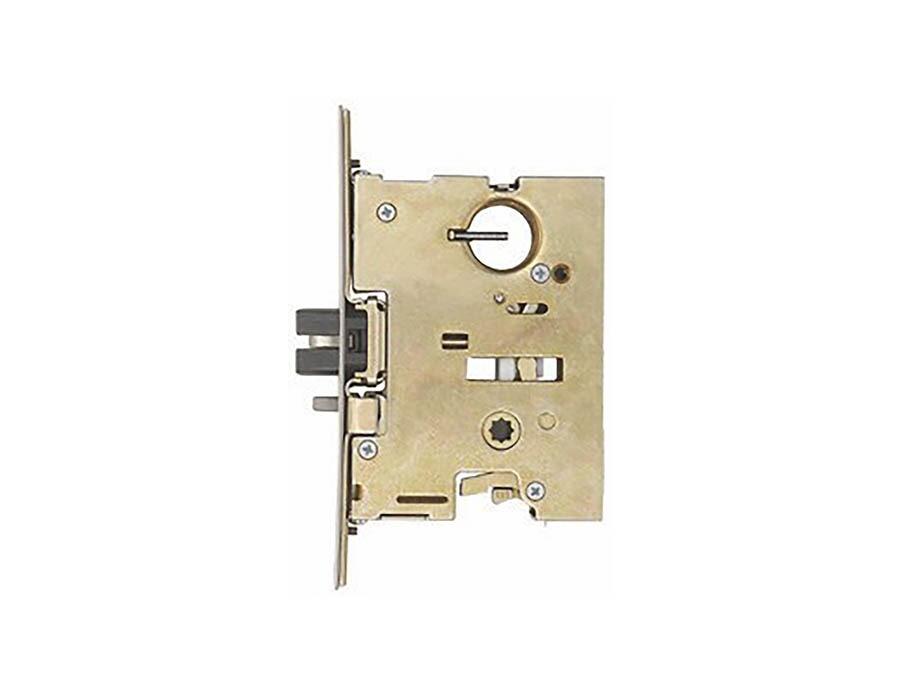

Heavy Duty Mortice Lock Exit Device - (versions suit doors <915mm & 1220mm)

The Quiet One® —A fluid dampener decelerates the touch bar on its return stroke and eliminates most noise associated with exit device operations. It is furnished on all 99 series exit devices.

Per BS EN 1125: 2008 Annexe A (informative), the device should be installed with the touch bar typically between 900mm and 1100mm from the finished floor level when the door is secure. Where it is known that most of the premises' occupants will be young children, it is acceptable to reduce the fixing height accordingly.

• Device functions - Ships ready for functions: EO, DT, NL, L, L-NL, L-BE & L-DT
• Universal - Non-handed, suits LH & RH doors
• Device lengths - Devices suit door widths to 915mm; optional devices suit doors to 1220mm
• Finishes - US28 (628) Anodized Aluminium. Alternative plated finishes are available for special order
• Strikes - Ships with standard 575 strike
• Dogging feature - Hex key dogging keeps the latch bolt held back for free swinging operation. Options available to special order - CD cylinder dogging & LD less dogging
• Fasteners - Includes fixings for both metal and timber doors from 19mm - 57mm thick with sex bolts available to special order - 425 for bolt-through fixings
• Latch Bolt - Easy action friction-free deadlocking latches cannot be depressed from the outside - 19mm throw

Selected Electrified Options -

RX Touch Bar Monitor Switch
RX2 Double Touch Bar Monitor Switch (RX2 feature uses two RX switches)
ALK Alarm Exit Kit
EL Electric Latch Retraction
PN Pneumatic Latch Retraction
QEL Quiet Electric Latch Retraction
CX Chexit Delayed Exit

Optional Trim (for Outside Access) add suffix -

DT - Dummy Trim (990 & 996)
EO - Exit Only
K -Knob (996)
L - Lever (996)
L-BE - Lever w. Blank Escutcheon (996)
L-NL - Lever Night Latch (996)
NL - Night Latch (990)
NL-OP - Mortice Cylinder - Optional Pull Required (20-001)
TP - Thumbpiece (990)

External Installations - As with any mechanical device, exposure to the elements may affect the operation and life of the device/finish and may void the warranty. If the device is used externally, we recommend the Von Duprin mechanical 98/99 rim exit device with one of the powder-coated finishes. We can add weep holes to mechanism cases if required. Regular lubrication of devices with DuraLube (available as part 091091) or similar may extend the life of the device. Electrified devices have not been tested or approved for outdoor use.

This range of architectural-grade escape devices includes the 98 Series with its smooth mechanism case and the established 99 Series with its familiar grooved design. The two styles are mechanically and dimensionally identical and provide a solution for standard stile applications down to 89mm. They are best suited to heavy-duty situations on perimeter and internal doors where architectural-grade safe egress in panic emergencies is required.
