Von Duprin 5100.689 | Relcross Door Controls

Dual Voltage Universal Mortice Electric Strike - Medium Duty

The 5100 Electric Strike meets the needs of locksmiths and security professionals. Its universal nature means a smaller stock holding.

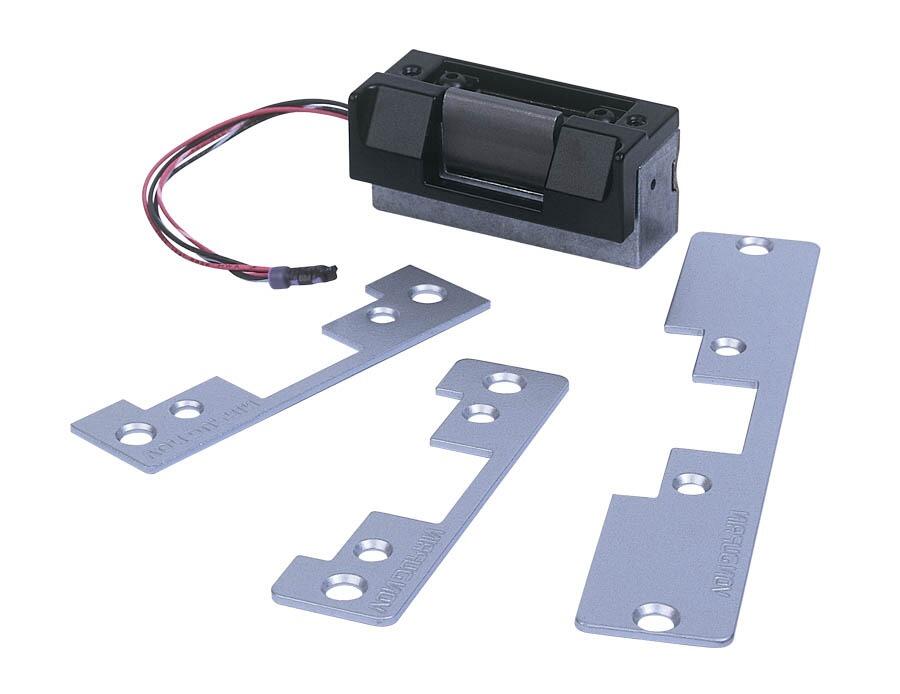

Application - Three faceplates are included:
- Hollow metal frames | Timber frames | Aluminium frames
Internal 12/24Vdc dual-voltage solenoid
Adjustable keeper
Fail Safe (FS) & Fail Secure (FSE)
Status Monitoring (not available on this model)
Heavy-duty construction
Tamper-resistant design
Tested to over one million cycles
590 kilos holding strength
Solenoid (Continuous Duty) – 12Vdc
Current Holding (Seated) – 380mA
Solenoid (Continuous Duty) – 24Vdc
Current Holding (Seated) – 190mA
To convert to AC operation, use SO-24 Kit
Standard Configuration - 24Vdc - Fail Secure (FSE)

Power Options - DC-regulated power supplies (recommended)

Relcross PS01 | 12Vdc 2.0 Amp Power Supply (PSU)
Relcross PS02 | 24Vdc 1.0 Amp Power Supply (PSU)

This easy-to-install electric strike is suitable for medium-duty applications where traffic flow control on internal or external doors is required. The solenoid has four wires, allowing you to configure the strike at the job site for either 12Vdc or 24Vdc applications. The 5100 electric strike is easily changeable between fail safe (FS) and fail secure (FSE) in the field without additional parts. It has a 3.175mm horizontally adjustable keeper. The mechanism allows the installer to adjust the strike where a door and frame are not correctly aligned or a door seal is causing too much pressure.
