Astragal and meeting stile seals seal the gap between a pair of doors.

Astragal/Meeting Stile Seals can be installed on virtually any pair of doors where sound attenuation is required. These products seal the opening to prevent heat loss, inhibit smoke passage, and act as a weatherization product.

• Excellent resistance to compression set, particularly at elevated temperatures and for extended periods
• Stays flexible between -58 degrees (F) and 450 degrees (F) with high flex fatigue resistance. Maintains a low closing force
• Easy installation requires no mechanical fasteners, can be cut to size in the field
• Available in 7, 8, 9 and 10 ft. coils
• Category H gaskets for use with listed steel frames and classified steel-covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic-covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes without hose stream. When applied to the door and frame assembly per the manufacturers' installation instruction, the assembly will comply with UBC 7-2 (1997) part II (US)
• Category J - Doors - gasketing that has been tested on a positive pressure fire door and frame but is not required for the door to obtain its fire door rating. Category J gasketing does not negatively affect the rating on a positive pressure door (US)
• Category J gaskets for use with listed steel frames and classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic-covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes (US)
• Storage and shelf life: All adhesive gaskets have a limited shelf life. This product must be used within six months of purchase and must be stored between 50 degrees (F) and 100 degrees (F)

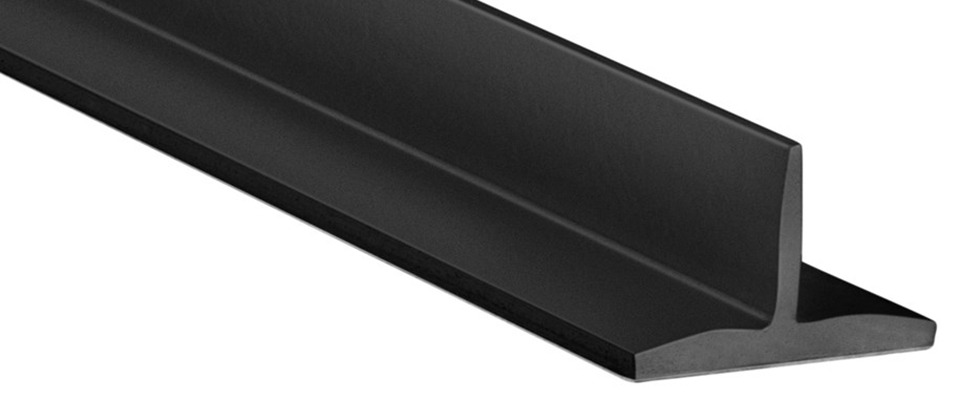

S771_
AVAILABLE FINISHES: BL, C, D, GR, W
AVAILABLE LENGTHS: 7', 8', 9', 10'

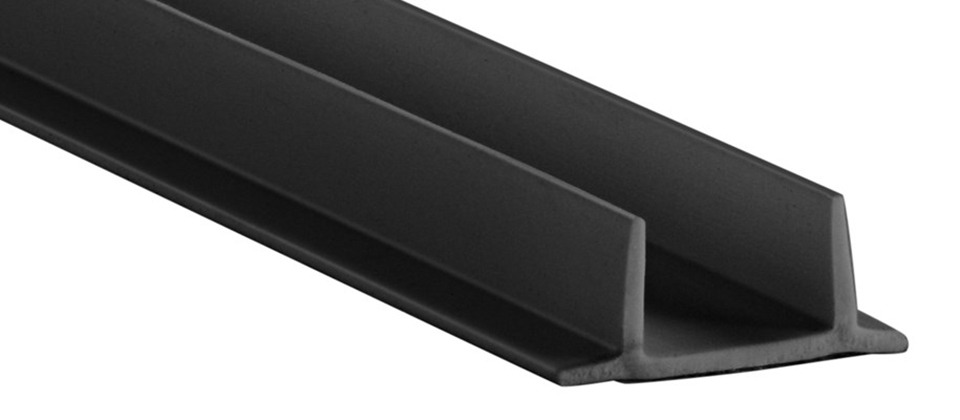

S772_
AVAILABLE FINISHES: BL, C, D, GR, W
AVAILABLE LENGTHS: 7', 8', 9', 10'
