For disabled people to have independent access through single or double swing doors, the opening force, when measured at the door's leading edge, must not exceed 30N between 0º and 30º from closed and 22.5N until 60º. This performance requirement might be impossible for some locations where closer forces and the influence of seals used for smoke sealing or acoustic performance requirements will add to operating forces.

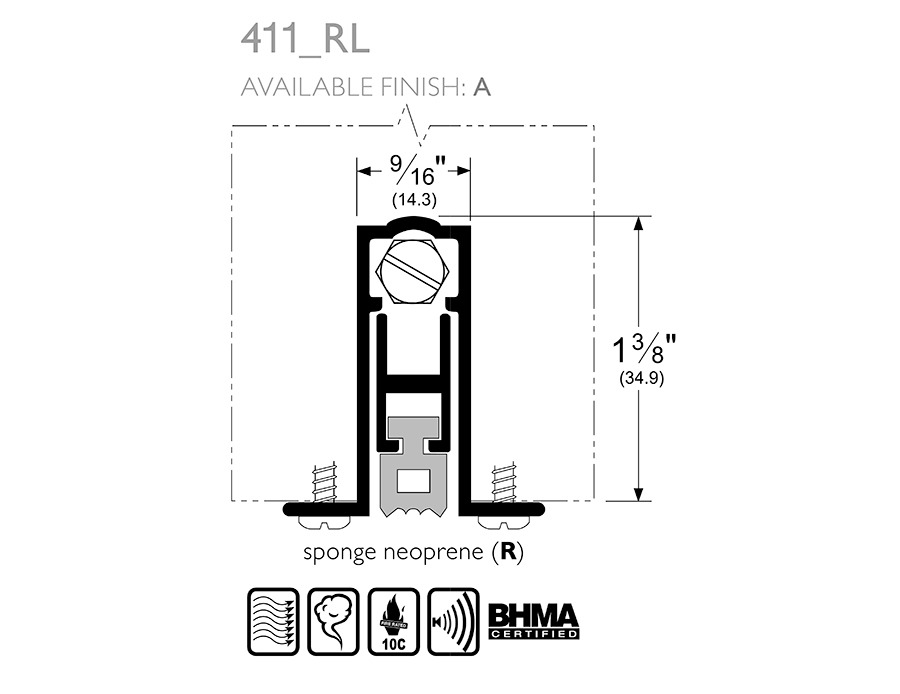

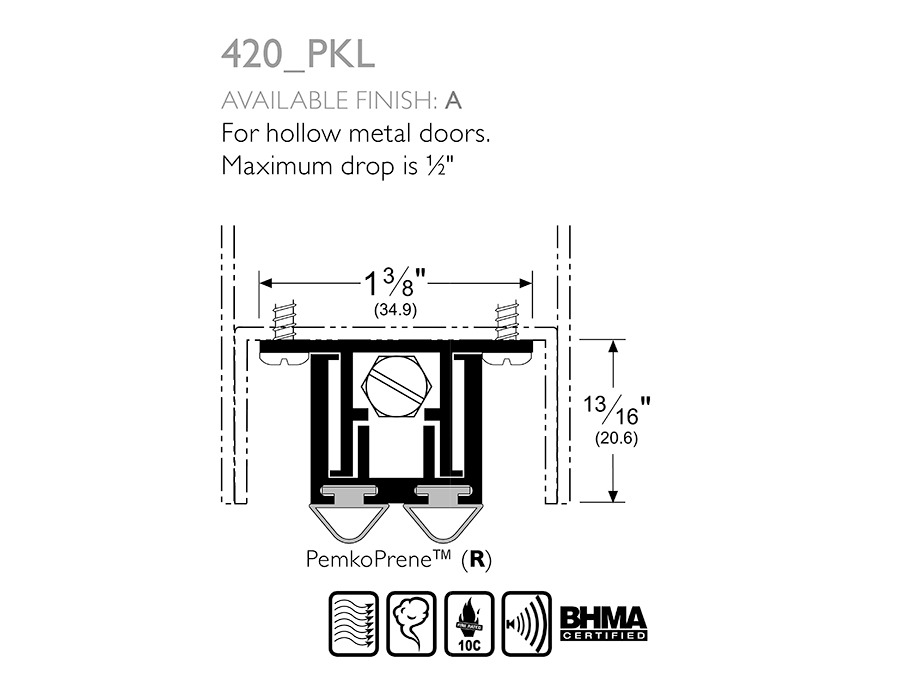

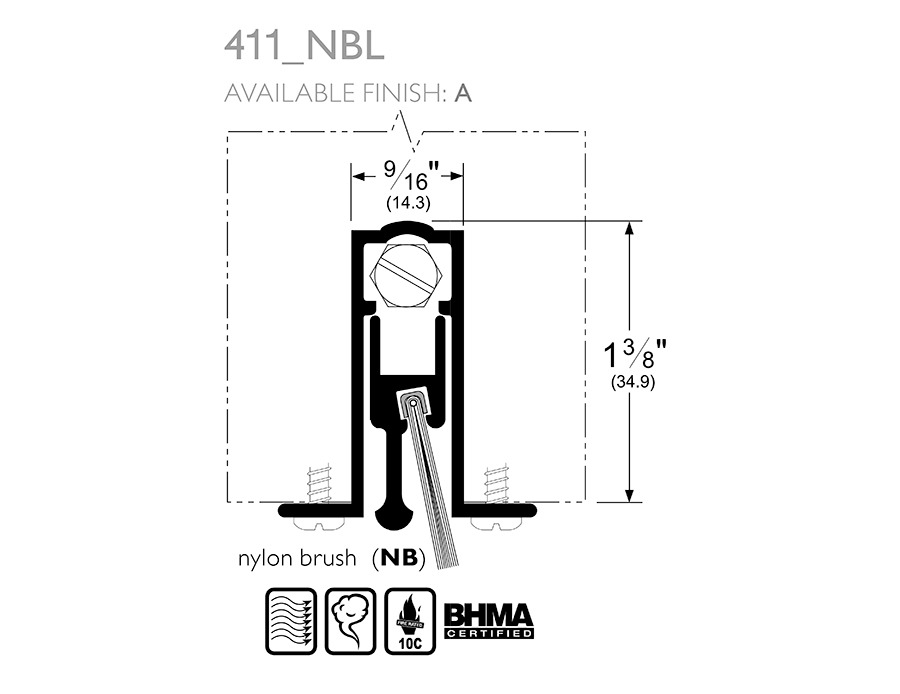

We provide an extensive range of threshold drop seals that may be used for smoke sealing purposes (where the under door gap
exceeds 3mm) or for sound attenuating, light tight or other performance requirements. All our threshold drop seals incorporate Pemko’s patented low friction ‘Feather Touch’ technology, resulting in minimal operating forces.

Optimum performance is achieved when the seal is adjusted to grip a 50-70 gsm piece of paper that can be withdrawn without tearing. Unless otherwise specified, the seal element consists of a closed-cell sponge neoprene insert to Pemko’s patented ‘tri-fin’ design. The seal maintains flexibility down to -70°F and benefits from good ‘memory’ and durability characteristics. Other seal element options are available where specified.
