Finishes: A, B, BDG, C, D, G, SP, SS
Pemko 357_, 357_ND, 357_ w. S88, 359_ & 375_R | Overlapping & T Astragal
- Additional Product DetailsLCN Door Closers | Von Duprin Exit Devices | Schlage Locks
Astragal and meeting stile seals seal the gap between a pair of doors.
Astragals in this configuration provide a security function (fixing screws are not accessible when the doors are in the closed position) in addition to effective weather-sealing performance.
357_, 357_ND & 357_ with S88
- When installing pairs of fire doors, care must be taken to maintain the requirements of NFPA 80 (US)
- Smoke ratings apply to SP and SS finishes (see 357 with S88) (US)

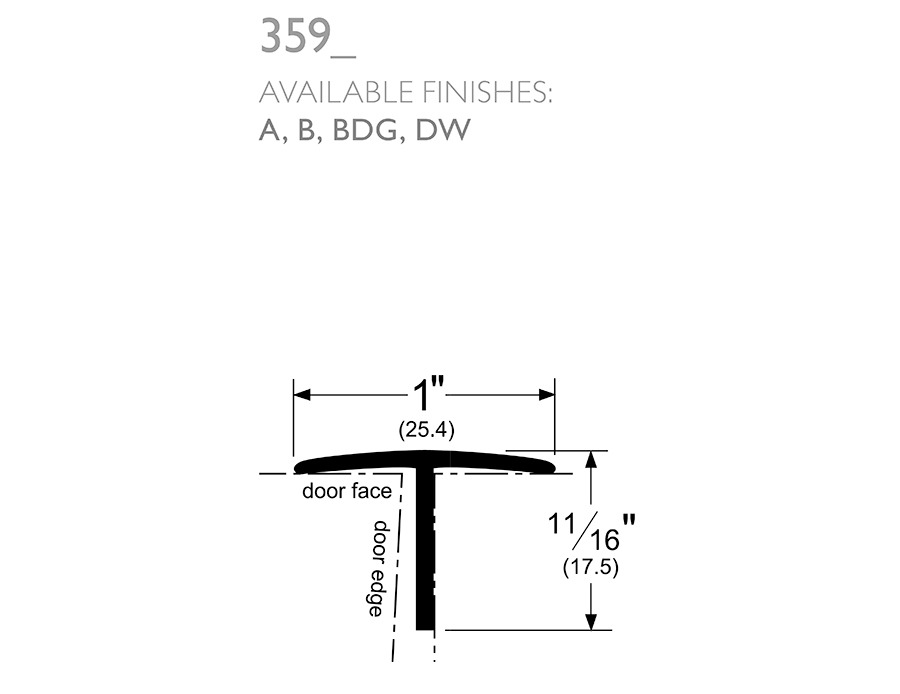

359_- For light residential installations.
- Supplied with weatherstrip nails for installation ( #16 x 7/8" flathead zinc nails)

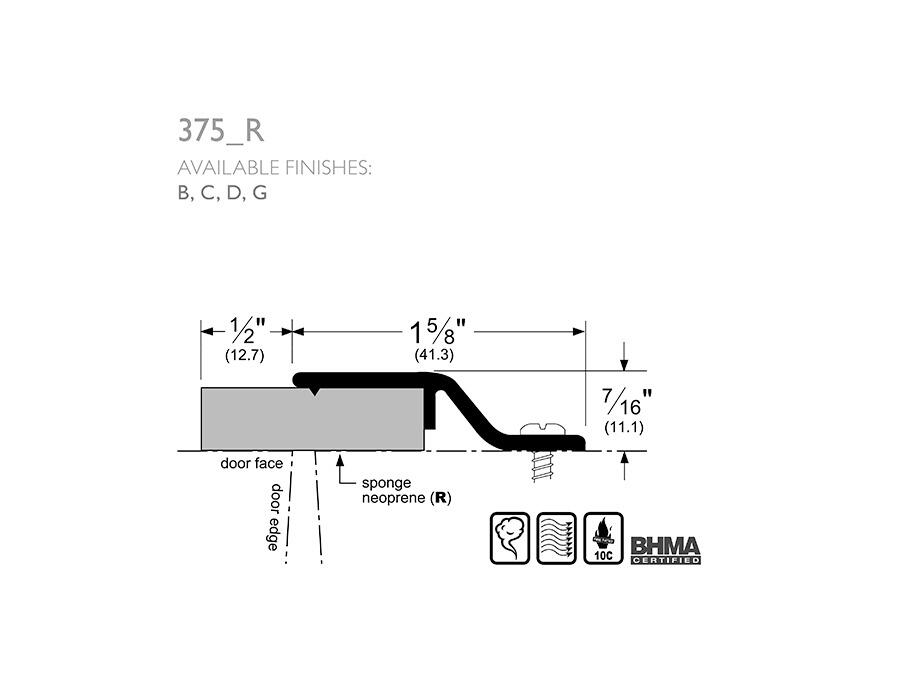

375_R- When installing pairs of fire doors, care must be taken to maintain the requirements of NFPA 80 (US)
357_ 357_ND
AVAILABLE FINISHES: C, D, G, SP, SS (#4 Finish & #4 Edge)
“ND” denotes “no drill” (unless specified “ND”, astragals are drilled)
Standard fastener is #10 x 1" Truss Head SMS357_ with S88
AVAILABLE FINISHES: SP, SS (#4 Finish & #4 Edge)
1⁄4"- 20 machine screws and thru-bolts must be ordered separately at additional cost
Standard fastener is #10 x 1" Truss Head SMS
S88 (see Adhesive Gasketing section) must be ordered separately at an additional cost if required359_
AVAILABLE FINISHES: A, B, BDG,375_R
AVAILABLE FINISHES: BR, CR, DR, GRKey to Inserts
E - EPDM, Solid
M - Magnetic
N - Neoprene or EPDM*
NB - Nylon Brush
P - Pile
PK - PemkoPrene®**
Q - Kerf-in Foam
R - Sponge Neoprene or EPDM*
S - SiliconSeal or Sponge Silicone (see individual part)
SB - Soft Brush
T - ThermoSeal™
TF - Triple Foam
V - Eco-V™
*N: As we “Green,” inserts “N” may be either Neoprene or EPDM.
*R: As we “Green,” inserts “R” may be either Sponge Neoprene or Sponge EPDM.
Over time, these inserts will move to EPDM material.
**PK: To best control our customers’ costs, some PK (Santoprene™) products may be a silicon-based elastomeric material with comparable performance.Finishes
A (Mill Finish Aluminium) B (Mill Finish Extruded Bronze [Brass]) BDG (Bright Dip Gold Anodized) C (Clear Anodized) D (Dark Bronze Anodized) G (Gold Anodized) SP (Galvannealed Steel) SS (Stainless Steel)
An Astragal seals the gap at the leading edge between a pair of door leaves. The pair can have 'plain' or 'rebated' meeting stiles—the design and suitability of the Astragal will vary accordingly between the two options. Astragals on external pairs of outward-opening doors commonly overlap Astragals, which protect against the weather and provide security as a lock guard. On internal doors, astragals protect against smoke ingress and provide additional security on locked doors.
Doors are typically the weakest link in any partition designed to have acoustic sealing properties. Astragals, perimeter gasketing, drop seals, and door sweeps can all prevent sound from leaking through cracks around the door perimeter.
