LCN 4040SE.US28 | Electro HO Door Closer (4040)
LCN 4040SE.US28 | Electro HO Door Closer (4040)
Finishes: US28 Silver w. Matching Arm & Track
LCN 4040SE.US28 | Electro HO Door Closer (4040)
- Additional Product Details
Electromagnetic Hold Open Heavy Duty Closer 24Vac/dc w. Backcheck, Plastic Cover and Sentronic 24V Track. Spring Power Adjustable Size 3-4. Universal Track for Two Possible Applications*.
This variant includes:
Cylinder - 4040SE-3071

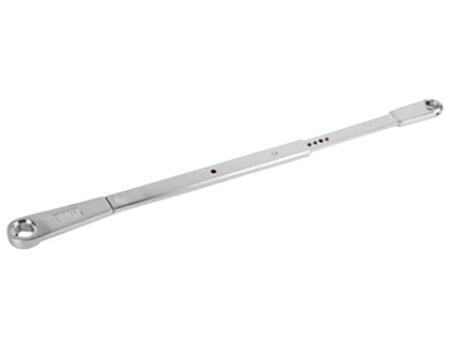

Standard, non-handed cast iron cylinder assemblyStandard Arm - 4040SE-3077T
Non-handed arm. Arm adjustable to select hold-open pointSE Track - 4040SE-3038
Non-handed. Mounts on either head frame or stop 24Vac/dc input for holding solenoid

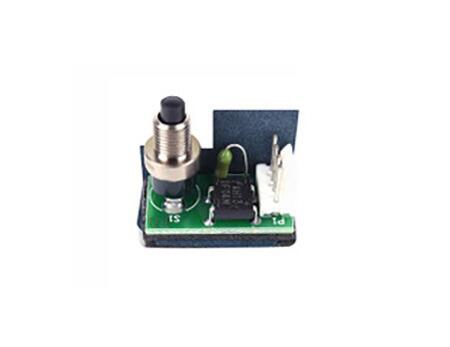

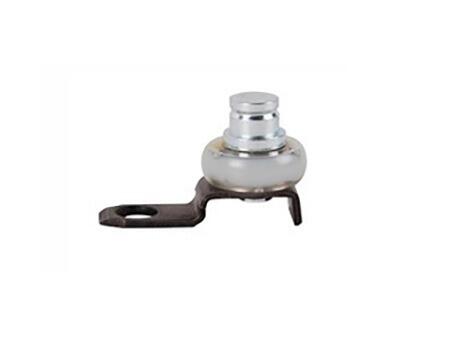

Includes test switch assembly with fuseTrack Roller - 4040SE-3034SE
Quiet, low-friction roller assembly. Shoulder dimension "X" = 3mm with Track Slider - 4040SE-168 Alloy metal slider for use in SE series tracks onlyTable of Sizes - Recommended range of door widths for all closer models.
Suits doors <102 kilos
*UKCA & CE Certification applies to Hinge (Pull Side) Mounting Only
Your compatible Power Supply is available here: Relcross PS02 | 24Vdc 1.0 Amp Power Supply (PSU)
The 4040SE Sentronic closer provides a single-point hold open for fire and smoke barrier doors. The 4040SE Series is UL listed for metal smoke barrier or labelled fire doors and meets ANSI/BHMA A156.15 and NFPA 101 Life Safety Code standards. It is cUL-listed for self-closing doors without hold open. Each closer is backed by a 2-year limited warranty, offers optional plated finishes and integrates with existing fire and life safety systems, minimising danger to life and property under fire conditions.

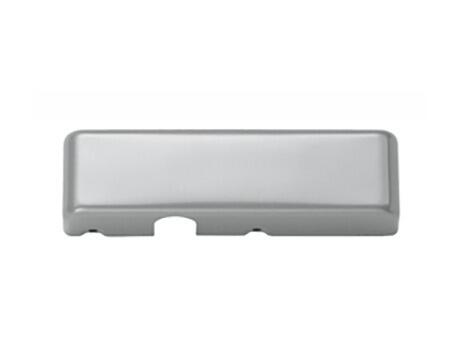

- Standard 4040SE series closer shipped with a standard arm, 24V SE track, standard cover and wood & machine screw pack
- Non-sized cylinders for interior doors to 1220mm
- Hold-open force is adjustable
- Momentary on/off switchboard assembly for testing door release also provides over-voltage protection. Field replaceable
- Functions as a full rack and pinion closer when hold-open is not engaged or the current is interrupted
- Closer mounts on either push or pull side of the door
- Non-handed for mounting on either right or left-hand door
- Universal Sentronic track offers concealed or surface wiring
- Interfaces with alarm systems. Consult Relcross for full details
- Standard or optional custom powder-coated finishes on the cover, arm and fasteners
- Optional plated finishes
- Non-handed
- Requires additional system components
- Surface Mounting
- For interior fire and smoke barrier doors. Single-acting cylinder on door top rail
- Exposed arm and track to the head frame
- Maximum Opening - Butt hinge template allows 110° with hold open points between 85° and 110°
- Optional SEL special long track allows hold open points between 90° and 120° in approximately 3° increments
- Consult Relcross for all pivot-mounted installations
- Butt Hinges should not exceed 127mm in width.
- Auxiliary Stop is recommended at the hold open point
- All Weather Fluid - Performs without variation: Manual Closers - between -35° to +49°, Electronic HO Closers & Automatic Operators - between +2° to +49°C. At approx. +75°C, the fluid will begin to leak from the mechanism. The flash point is approx. 110°C
The 4040SE Series functions as a full rack-and-pinion closer when the hold-open option is not engaged or the electrical current to the door is interrupted. The single-lever arm is specifically designed for interior doors. The 4040SE Series is a surface-mounted closer on the hinge pull side or the stop face push side of the door.LCN Door Closers | Von Duprin Exit Devices | Schlage Locks
Relcross Limited (trading as) Relcross Door Controls | Hambleton Avenue | DEVIZES | Wiltshire | SN10 2RT | United Kingdom | T: ++ 44 (0) 1380 729 600 | F: ++ 44 (0) 1380 729 888 | E: sales@relcross.co.uk
- Certification
UK Fire Certification per BS EN 1634-1:2014 (timber) - 120 mins
UK Fire Certification per BS EN 1634-1:2014 (steel) - 60 mins
WFRC No. 142058EN 1154: 1996 + A1: 2002/AC:2006
EN 1155: 1997 + A1: 2002UKCA | CE | ANSI | UL | 120 Mins Timber | 60 Mins Steel | Warranty: 10 Years (Mechanical), 2 Years (Electrical)
Certificates, including DoPs, downloadable here
