Standard Duty Closer w. Delay Action & Backcheck, Plastic Cover - Adjustable EN Spring Sizes 2—5 (ANSI 1—6). Pull Side of Door, Push Side of Door or Top Jamb (Push Side) Transom.

This variant includes:

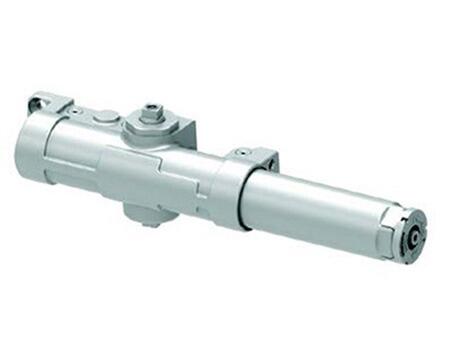

Cylinder - 1460-3071DEL
Standard, non-handed cast iron delay action cylinder assembly. It delays closing from 160° down to 75° (hinge pull side), 180° down to 95° (top jamb push side), and from maximum opening down to 75° (stop face push side) - adjustable up to 60 seconds.

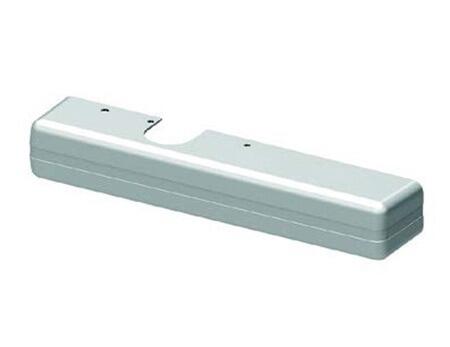

Cover - 1460-72
Standard, non-handed slim line plastic cover with feature strip

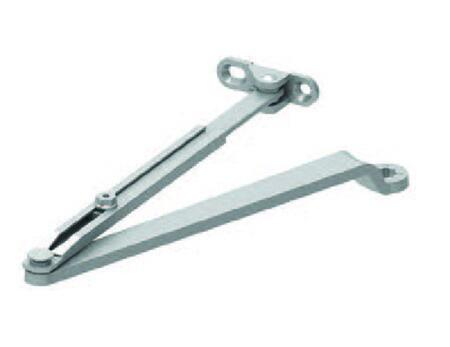

Regular Arm - 1460-3077
Non-handed arm mounts hinge side or top jamb.

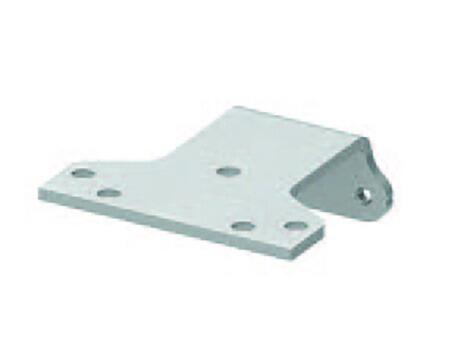

PA Shoe - 1460-62PA
Required for parallel arm mounting

Table of Sizes - Recommended range of door widths for all closer models.

Correct Closer Adjustment

Suits doors <102 kilos

NB—UKCA/CE certification does not apply to LCN's delay-action door closers. Do not use this closer on fire doors.

The 1461 is adjustable through EN spring sizes 2—5 (ANSI 1—6) and mounts to the most common commercial footprint. The 1460 Series also features a complete line of regular and extra-duty arms and LCN's peel-n-stick installation templates. The LCN 1460 series crams in amazingly high levels of strength and accurate adjustability. ‘Super Stock’ closers will control internal doors up to 1524mm wide and external (perimeter) doors to 1220mm.

• Hinge (pull side) mounting
• Top jamb (push side) mounting
• Stop face (push side) mounting
• Non-handed for right and left swinging doors
• Adjustable hydraulic backcheck cushions opening swing prior to 90 degrees
• Separate regulation of general closing speed and latching speed
• Joints in arm and shoe adapt to uneven trim
• Reversible shoe to boost latching power on double lever arms
• All Weather Fluid - Performs without variation: Manual Closers - between -35° to +49°C, Electronic HO Closers & Automatic Operators - between +2° to +49°C. At approx. +75°C, the fluid will begin to leak from the mechanism. The flash point is approx. 110°C

Designed for maximum versatility, the 1460 Series can be used for commercial and institutional applications. This fully universal closer (1461) offers various options with new, fast and accurate installation. It is best suited to standard duty situations on perimeter and internal doors where a high level of traffic is anticipated.
